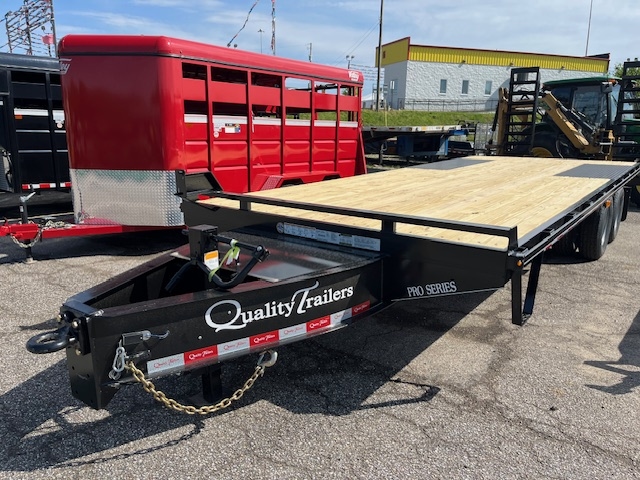

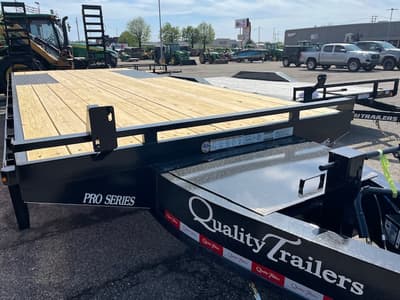

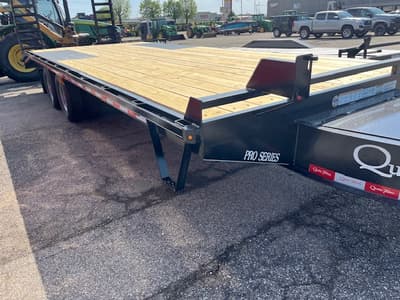

Quality PROHP PRO GRADE PINTLE HITCH TRAILER 96x25 w Dove 2026

Professional Grade (in addition to General Duty features): Heavier main frame I-beams and side rails with closer cross member spacing allow a higher GVWR rating, premium radial tires, toolbox with lockable lid (standard on all professional grade models), LED rubber mounted sealed beam lighting in enclosed boxes with sealed modular wiring harness. Cold form continuous tongue (no notching or heating), heavier main frame I-beams and side rails with 16″ cross member spacing allow a higher GVWR rating, premium radial tires, toolbox with lockable lid, LED rubber mounted sealed beam lighting in enclosed boxes with sealed modular wiring harness.

GVWR 25000 lb. – Capacity 20000 lb. with 5000 lb. Hitchload

Treated wood deck
96″ wood deck 101.5″ to outside of rubrails
10000 lb. oil bath axles with all wheel brakes
Slipper spring suspension
235/80 R16 load range E 10 ply rating West Lake Radial tires
12” I-beam frame (W12x16)
6″ channel side rails
3″ channel cross members – 16″ spacing
Cold form continuous tongue (no notching or heating)
Toolbox with lockable lid built into tongue

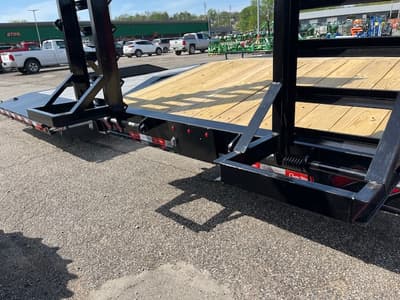

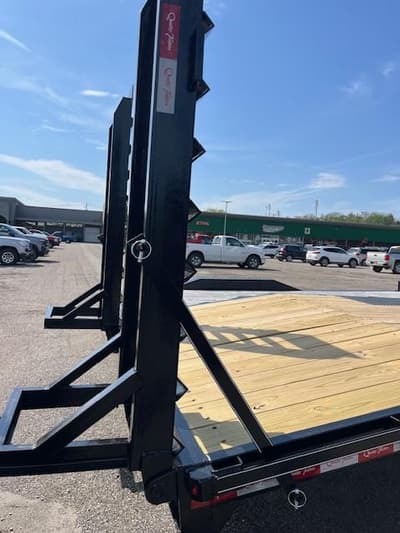

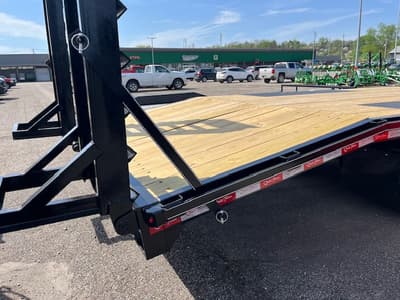

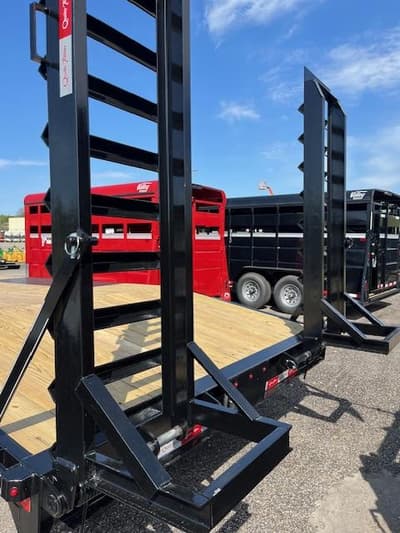

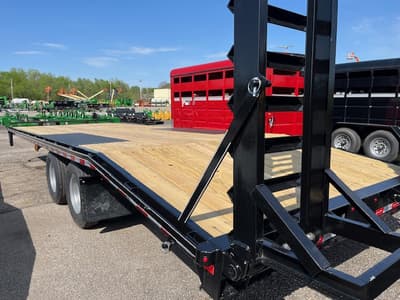

5 ft. swing-up ramps with support foot

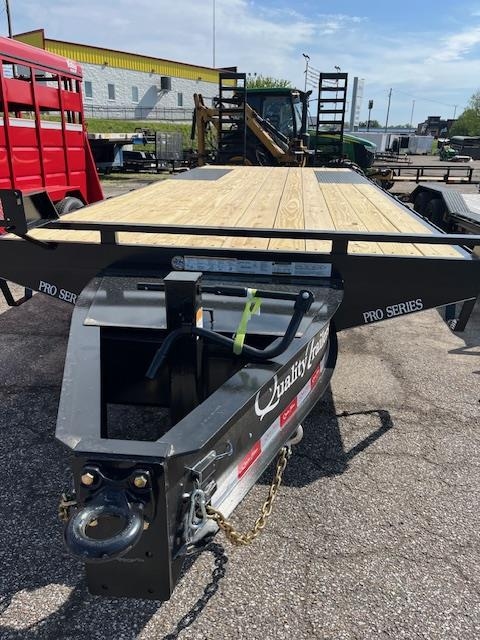

Pintle ring on heavy adjustable plate (no ball hitch available)
12000 lb. drop-foot jack

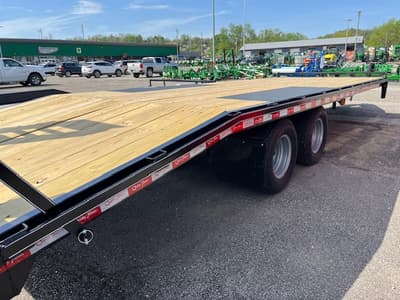

Metal plate over wheels for lowest possible loaded deck height (35″)
Stake pockets and rubrail
Self charging break away kit, safety chains, full DOT reflective tape and all rubber mounted LED sealed beam lighting with U.S made sealed modular harness with 2 year warranty
Primed, 2 coats of acrylic enamel, pin stripe
