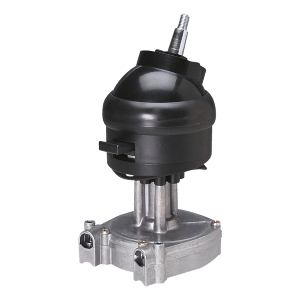

T83FC Zero Torq Rotary Helm Single Cable Steering T83FC has a tilt range of 48° and five locking positions, fast to get connected and easily installed with a planetary gear design and 3.8 approx steering wheel turns lock to lock. Features: * Tilt range of 48° and five locking positions * Fast connect, simple installation * The tilt device eliminates under-dash movement * Standard 3/4” tapered shaft – stainless steel * All stainless steel cable output ends * Corrosion resistant materials * T83NRFC steering system is not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat * X52 tilt mechanism fits Ultraflex tilt mount rotary and rack and pinion steering helms as well as Ultraflex tilt mount hydraulic pumps except SilverSteer™ and MasterDrive™ steering systems * For boats faster than 50 mph, our hydraulic steering systems are recommended * Optional steering wheel * Engine connection kits * Exceeds EN 28848 safety standards * Exceeds ABYC P17 safety standards Specifications: * M66 steering cable stroke: 228 mm (9') * Lock-to-lock steering wheel turns: Approx. 3,8 * Max. dash depth: 25,4 mm (1') * Max. steering wheel diameter: 406 mm (16') * Min. steering cable bend radius: 200 mm (7.9') This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
