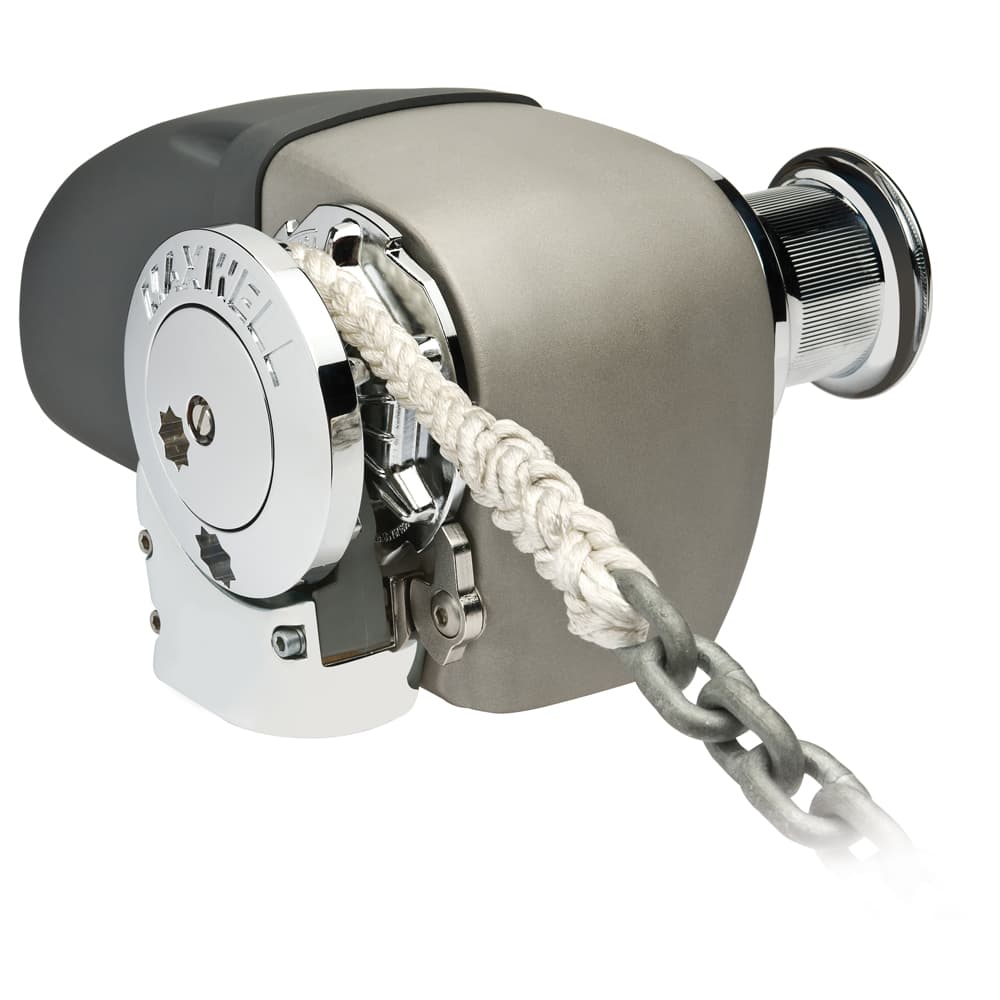

HRC 10-8 Horizontal Windlass 5/16' Chain, 5/8' Rope, 12V, with Capstan Designed for boats up to 45 feet, the HRC10-8 Horizontal Series windlasses proudly follow in the highly successful footsteps of Maxwell's previous, fully automatic rope / chain anchor winches. Kit Includes * Windlass * On/Off Breaker Panel * Reversing Solenoid * Up/down Panel Switch * Clutch Release Handle Features * The HRC10-8 is Maxwell's fully automatic rope/ chain or all chain horizontal windlass * Designed to effortlessly retrieve and deploy 8mm (5/16' ) chain and 16mm (5/8' ) three strand or 8-brait (plait) rope. * The HRC 10-8 has a patented uniquely designed chain wheel will accommodate ANY 5/16' or 8 mm marine grade chain spliced to 5/8' rope. * The aesthetically pleasing above deck design, evolved from the philosophy of form follows function, encapsulates the motor and drive in a two part watertight case, saving space below deck * Case Material: Anodized Aluminum * The two part case consists of a die cast, marine-grade hard anodised alloy front section and a rugged and easily removable composite motor cover aft section. * This two piece watertight case allows for quick and easy, on-deck,routine maintenance. * Simple ' bolt down' installation ensures effortless and rapid on-deck installation and set up. * The stainless steel pressure arm always exerts maximum control pressure on the rode (rope, splice or chain). * The new and revolutionary patented Wave Design chainwheel is able to accommodate a wide range of chain pitch differences, within the specified chain size diameters, suitable for use with the HRC10 Series. * The unique Maxwell ' wrap around' horizontal chainwheel ensures that more than 90x of the wheel is used, allowing greatly improved rope and chain handling compared with competitor designs. * High quality Stainless Steel chainwheels * The HRC10 works just as effectively with all-chain rodes for those who desire the added security and holding power of an all-chain anchor system. * The integral chain pipe and huge, through deck hawse pipe throat ensures easy entry of the rope / chain rode into and out of the anchor locker. * Cone type clutch/brake mechanism permits manual, 'free fall' anchoring and emergency crank recovery of the rode and anchor if required. * The sealed oil bath and marine-grade hard anodised, alloy gearbox provides high efficiency output drive via precision worm and wormwheel. * Exclusive Maxwell 3 YEAR Limited Warranty Specifications * Maximum PUll: 1540 lbs * Chain Short Link: 5/16' or 8mm * Chain Speed (Anchor Retrieval): 79 ft per Minute * Rope Speed (Anchor Retrieval): 65 ft per Minute * Rope Size (Nylon 3 strand or 8 Plait): 5/8' * Power Supply (DC): 12VDC * Motor Power: 1000 Watts * Net weight: 42 lbs
