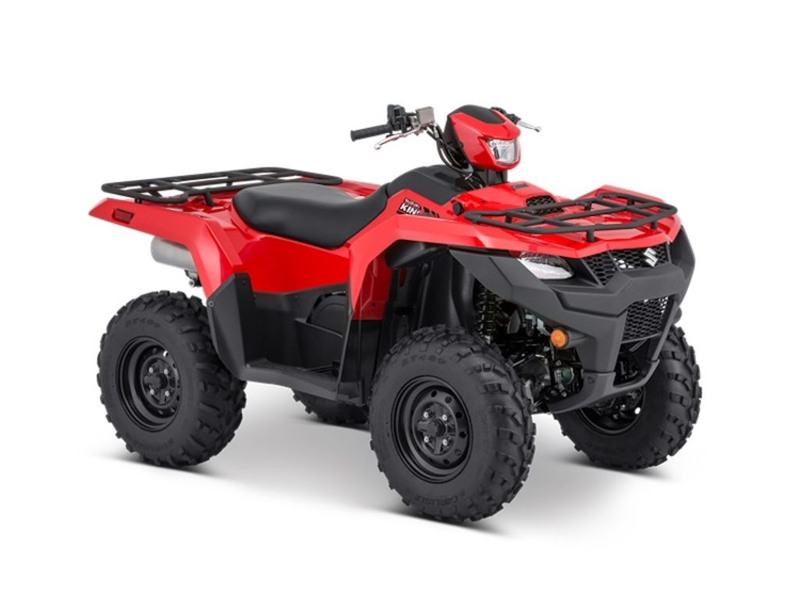

Suzuki KingQuad 500AXi 2026

Now available at Cycle Springs Powersports in Clearwater, FL: the 2026 Suzuki KingQuad 500AXi—a capable utility ATV powered by a 493cc liquid-cooled 4-stroke single-cylinder engine, built with Suzuki fuel injection, Quadmatic automatic transmission, selectable 2WD/4WD, differential lock, independent suspension, and strong KingQuad work-and-trail capability.

Key Highlights

• Engine & Performance: 493cc SOHC liquid-cooled 4-stroke single-cylinder engine tuned for a wide powerband and strong top-end power
• Fuel System: Suzuki electronic fuel injection improves throttle response, fuel efficiency, and starting consistency
• Transmission: Quadmatic CVT-type automatic transmission with High, Low, Neutral, and Reverse
• Engine Braking: Advanced engine-braking system helps reduce free-wheeling when riding downhill
• Drive System: Handlebar-selectable 2WD, 4WD, and 4WD differential lock for changing terrain and traction needs
• Suspension: Independent double-wishbone front and rear suspension with gas-charged shocks and 5-way preload adjustment
• Brakes: Dual hydraulic front disc brakes and sealed oil-bathed multi-disc rear brake for durable stopping performance
• Utility: Standard receiver-type trailer hitch mount with up to 1,322 lb towing capacity
• Cargo & Protection: Rugged steel-tube cargo racks, polyethylene skid plates, half-shaft guards, full floorboards, and integrated storage compartments
• Lighting & Electrical: Dual fender-mounted headlights, handlebar-mounted headlight, LED taillight, multifunction LCD instrument panel, and sealed 12V accessory outlet

Specifications

• Displacement: 493 cc
• Engine Type: 4-stroke, liquid-cooled, 4-valve OHC single-cylinder
• Bore x Stroke: 87.5 mm × 82.0 mm
• Compression Ratio: 9.9:1
• Fuel System: Suzuki electronic fuel injection
• Starter: Electric
• Transmission: Automatic variable-ratio V-belt; high/low range and reverse
• Clutch: Dry shoe, automatic centrifugal type
• Drive System: 2WD, 4WD, and 4WD differential lock
• Final Drive: Shaft drive
• Fuel Capacity: 4.6 gal
• Overall (L × W × H): 84.6' × 47.8' × 50.6'
• Seat Height: 37.0'
• Wheelbase: 50.6'
• Ground Clearance: 10.2'
• Curb Weight: 694 lb
• Front Suspension: Independent double wishbone; coil spring, gas charged and oil damped; 5-way preload adjustable
• Rear Suspension: Independent double wishbone; coil spring, gas charged and oil damped; 5-way preload adjustable
• Front/Rear Brakes: Twin front disc brakes / sealed oil-bathed multi-disc rear brake
• Front/Rear Tires: AT25 × 8-12 / AT25 × 10-12

With fuel-injected 493cc power, selectable 4WD with differential lock, rugged utility equipment, independent suspension, and strong towing capability, the KingQuad 500AXi is built for riders who need dependable Suzuki ATV performance for property work, hunting, trail riding, and outdoor tasks. Contact Cycle Springs Powersports in Clearwater, FL for pricing and current availability.
