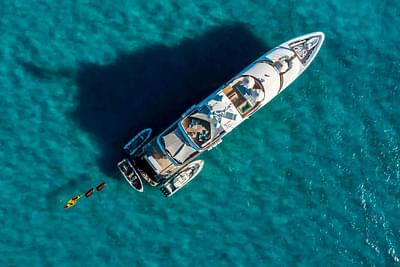

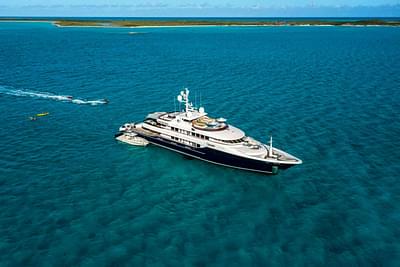

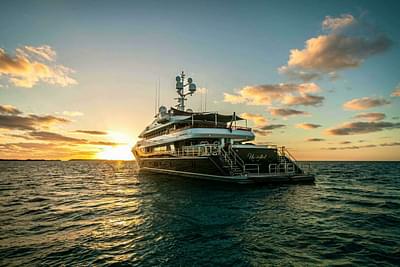

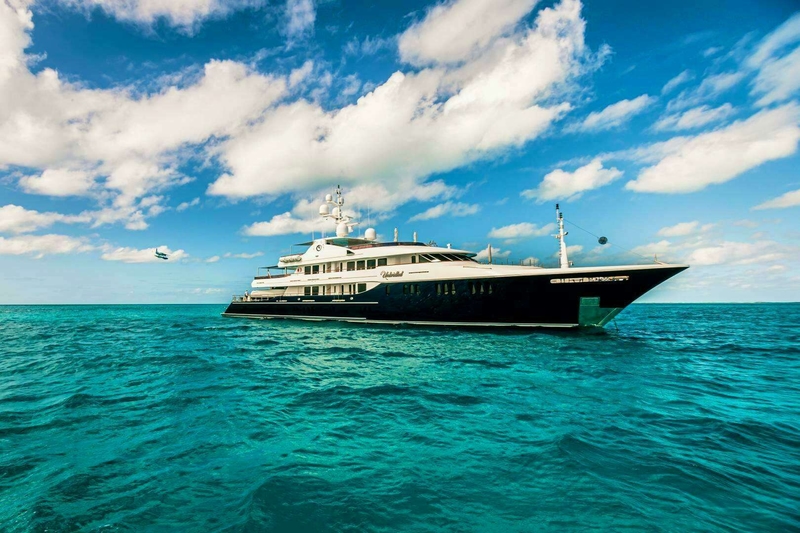

Trinity Yachts Custom 2009

This impressive vessel is powered by twin Caterpillar 3512B engines, delivering a remarkable 1509 kW (2,012 hp) each, with engine hours recorded as of April 2025. It features two Reintjes WAF 743 K31 gearboxes with a gear ratio of 3.52:1 and 6-inch Aqualoy HS-22 shafts equipped with Michigan Wheel five-blade propellers. The boat achieves a maximum speed of 16 knots, a cruising speed of 13.5 knots, and an economical speed of 12 knots, with fuel consumption ranging from 882 liters/hour at full speed down to 360 liters/hour at economical speed, offering a range of 3,569 nautical miles at 12 knots with a 10% reserve. The vessel is equipped with two 189 kW Kilo Pak generators and a 99 kW emergency generator, all with recorded hours as of April 2025, ensuring robust power availability. It operates on a dual-voltage system of 480V and 110V at 60Hz, supplemented by two ASEA AC1003 power converters for shore power. With a fuel capacity of 126,445 liters (33,403.24 gallons) and a water capacity of 22,710 liters (6,000 gallons), it is well-prepared for extended voyages. The onboard amenities include two FCI 4000 US gallon per day watermakers and a comprehensive range of waste management systems. The advanced steering system features EMI's proportional electro-hydraulic controls, complemented by a Quantum bow thruster and stern thruster for enhanced maneuverability. Stabilization is managed by two Quantum active fins with digital controls, ensuring a smooth ride. The vessel's safety and firefighting systems are state-of-the-art, with alarms and CCTV security systems, as well as a variety of communication equipment including satellite and cellular systems. For entertainment and comfort, the interior boasts a luxurious main salon with advanced AV systems, a dining area, gym, and multiple guest cabins, accommodating up to 16 guests and 14 crew members. The master stateroom features an office and en suite bathroom, while the guest accommodations include double VIP cabins and twin cabins with versatile bedding arrangements. The exterior includes ample recreational equipment, including tenders, water sports gear, and a jacuzzi dip pool, ensuring an enjoyable experience on the water. This vessel has undergone extensive upgrades and maintenance, ensuring it operates at peak performance while providing luxury and comfort for all onboard.
