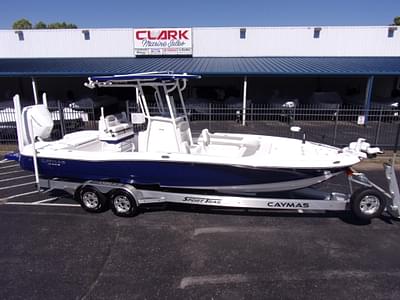

Caymas 28 HB 2025

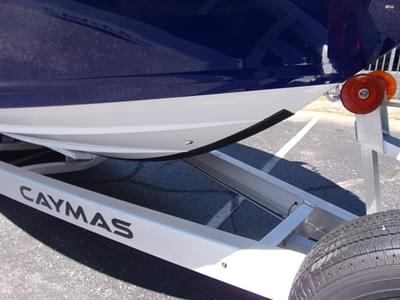

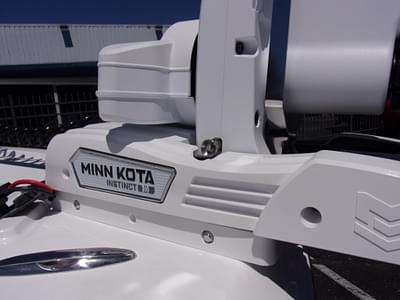

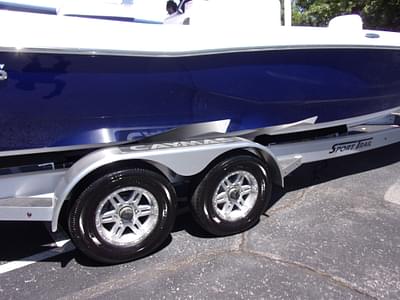

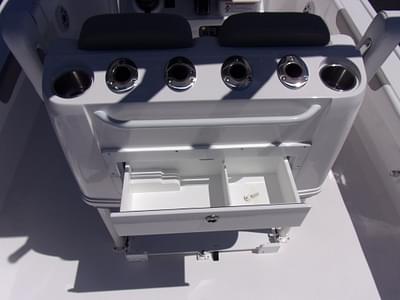

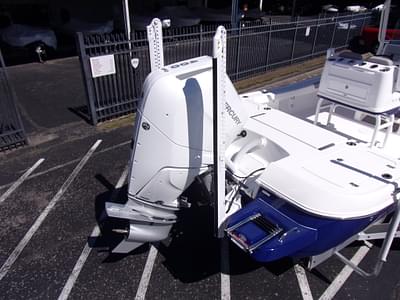

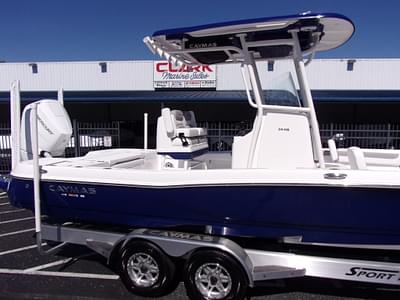

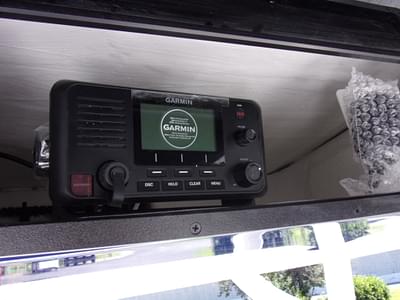

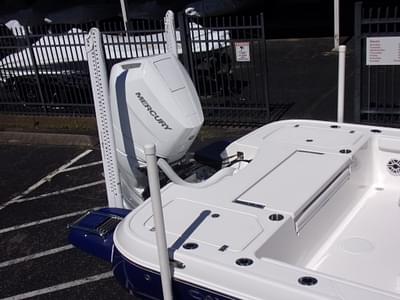

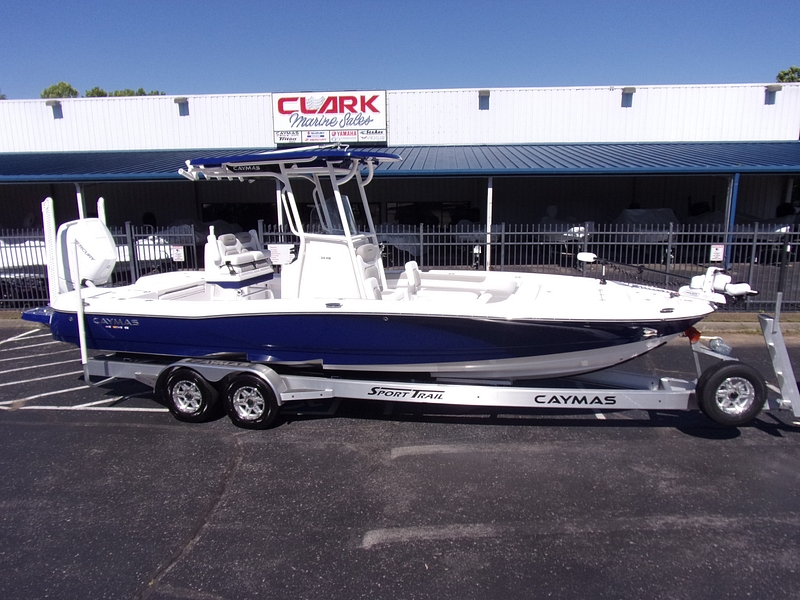

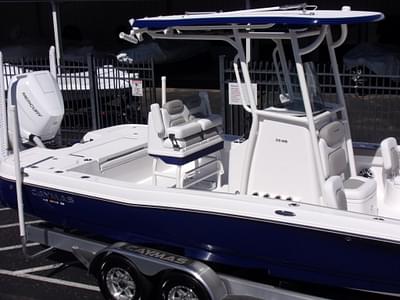

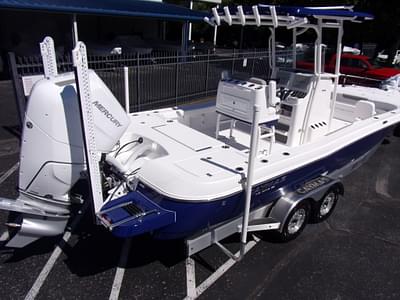

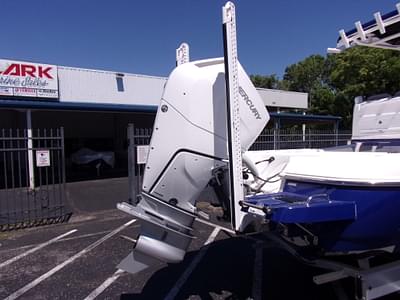

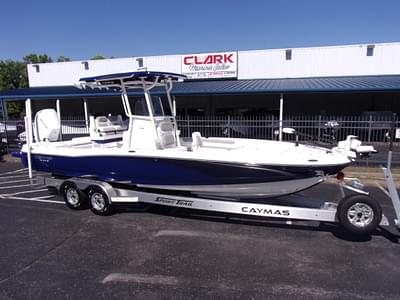

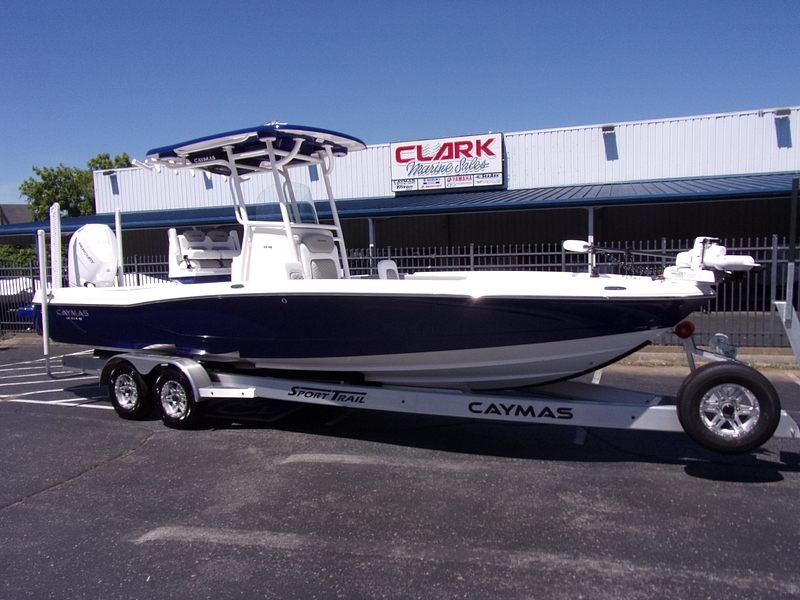

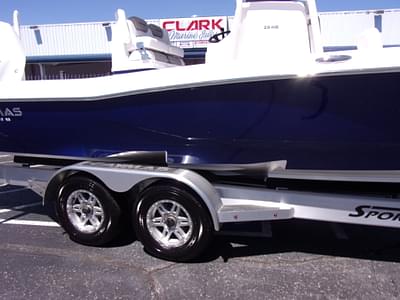

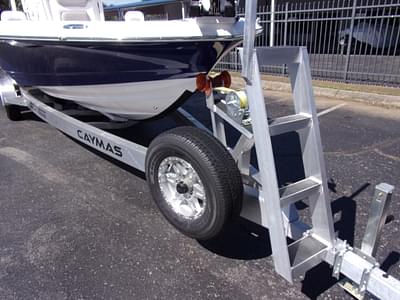

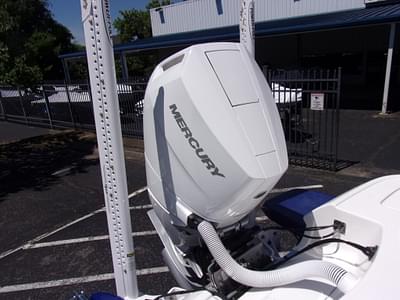

Spectacular 2025 Caymas 28 Hybrid Bay with a Mercury Verado 400. Options on this boat include two Garmin GPS Map 8612's, Garmin 215 VHF radio with 4' antenna, Garmin GPS antenna, JL Audio upgrade #1 (includes MM100 head unit, (6) 6.5' M6 speakers, (2) 8.8' M6 speakers), Garmin Clearview / Side View GT 36 UHD transducer, complete upholstery package (adds coaming bolsters, forward seating cushions, leaning post fold-down armrests, and 2 cupholders at bow seating), motorized battery switch panel (includes battery parallel, 2 bank charger for engine and house battery, & voltage display - includes AGM house battery), MinnKota 15 x 3 charger (trolling), 2 10' Power Pole Blades, freshwater shower system, gunwales rodholder, port livewell, Edson black steering wheel, T Top option with white powder coating, MinnKota RT Instinct 115 / Quest, quick release trolling motor mount with disconnect plug, leaning post organizer / sliding drawer, custom cooler slide, premium paint, keel protector and a Custom Sport Trail trailer with spare aluminum wheels, poly bunks, winch & load guides, bow step ladder.

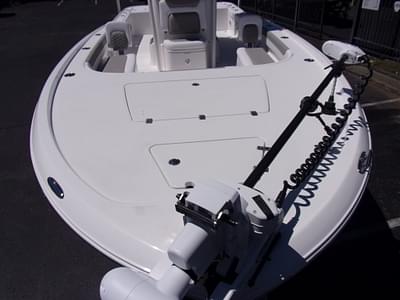

The New Caymas 28 HB is a perfect combination of pro-level fishability, distinctive contemporary styling, and family-focused comfort. Performance starts with a Michael Peters Stepped-Vee Ventilated Tunnel Hull. This patented hull delivers speed, fuel efficiency, and a precise and dry ride. Serious anglers will appreciate the 28 HB’s huge nonskid casting deck, massive built-in storage compartments for tackle and gear, 35 gallon aerated live wells and baitwell, backlit console display and a 120-gallon fuel tank for maximum range.

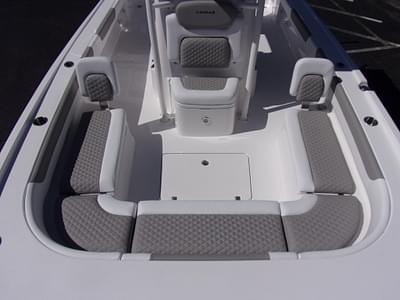

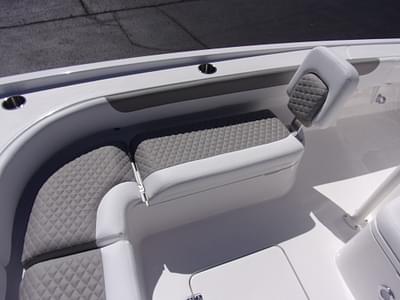

Family and friends who hop aboard for the day of fun will love the 28 HB cushioned seating at bow and stern, extra elbow room afforded by the boat’s 9’4” beam, the combination of high freeboard and deep gunnels for added safety and security, a rocking stereo system and a “butter-soft’ ride. See for yourself how the Caymas 28 HP enjoys the best marine fit and finish utilizing the highest quality marine hardware and craftsmanship.


Standard features include the following:
Construction
Patented Michael Peters double Stepped V Ventilated Tunnel (SVVT) running surface
Limited lifetime hull warranty
Three (3) year limited component warranty
100% composite construction—no wood
Tri-core composite transom
High performance resin and barrier coat
Hand-laid fiberglass hull
Zero-flex fully foamed finished stringer grid system with integrated chase tubes
Premium gelcoat, Pure White, with UV inhibitors
Fuel tank 5052 aluminum
Plumbing and electrical systems tank tested

Boat systems

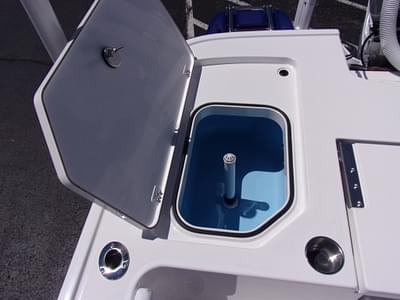

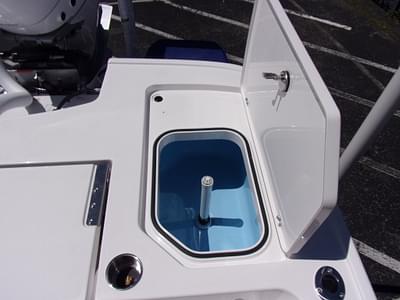

35 gal. starboard-side transom livewell with 800 gph pump and high-speed pick-up
Central manifold drain system with shut-off valves
4 gpm raw water washdown pump
Two (2) 1500 gph bilge pumps (one (1) automatic, one (1) manual)
Mid-ship 500 gph automatic pump
Large fish box with macerator pump
Six-gauge trolling motor wiring harness
Battery switch
Circuit breaker protected tinned wiring
Electric trim tabs with LED indicators

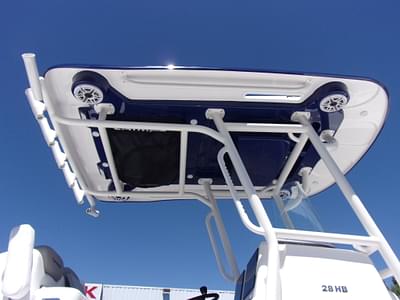

LED anchor light and navigation lights integrated into hard top
LED cockpit courtesy lights
LED interior console lights
LED compartment lights
LED livewell lights
LED under gunwale lights
Factory installed outboard engine of choice with engine gauge
Stainless steel push-button switches with backlit LED indicator lights
Trolling motor battery trays (36v)
AGM engine battery

Deck and hull
Seven (7) 8″ through-bolted stainless steel pull-up cleats
Four (4) gunwale mounted stainless steel rod holders

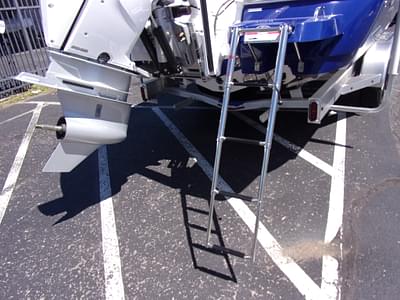

Two (2) custom swim platforms; one (1) with boarding ladder
Aluminum backing plates glassed in for seats, cleats, rails, rod holders and tops

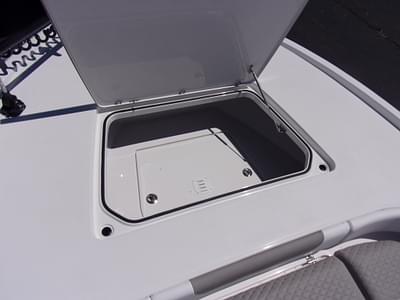

Anchor locker with integrated anchor holder
Completely finished fiberglass lids, boxes, doors, and bilge area
Heavy duty rub rail with stainless steel insert

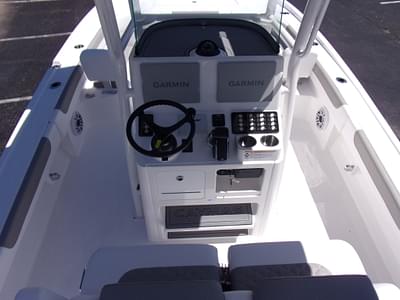

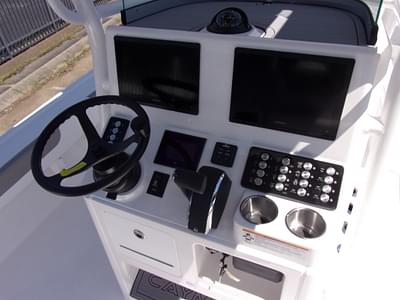

Console and helm

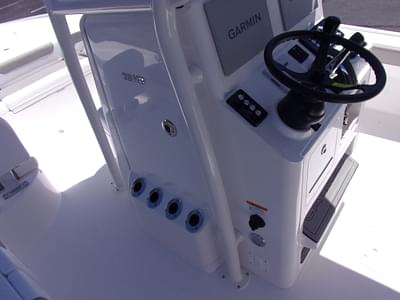

Custom fully finished fiberglass console with large access door
Custom console with recessed footrest and storage box

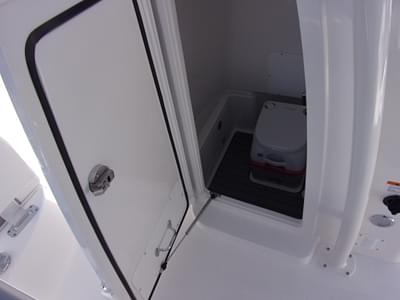

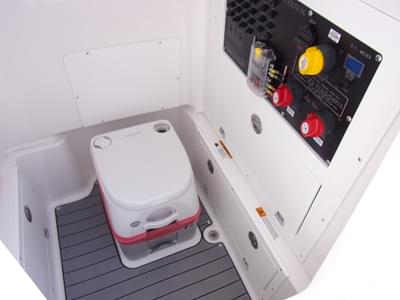

Porta Potti
Edson® stainless steel comfort grip steering wheel with power knob and tilt steering
SeaStar hydraulic steering
Eight (8) stainless steel vertical console rod holders
Convenient USB port in console storage box

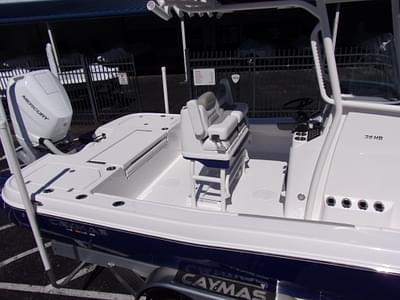

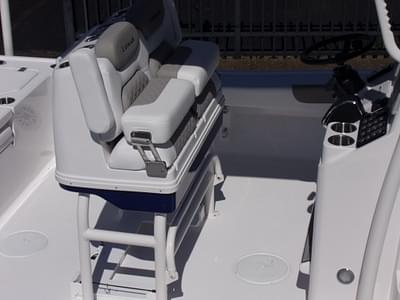

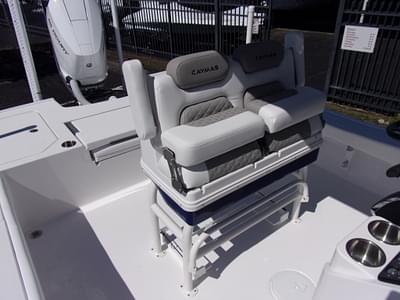

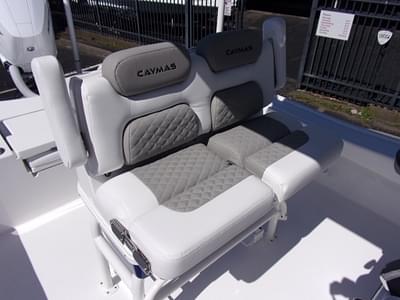

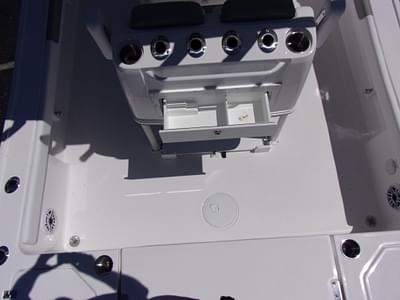

Pro series color-matched fiberglass leaning post with custom flip-up bolster seats and backrest, four (4) rod holders and two
(2) stainless steel lighted cup holders

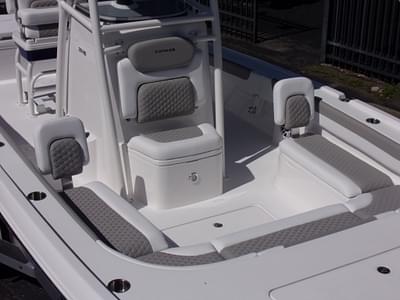

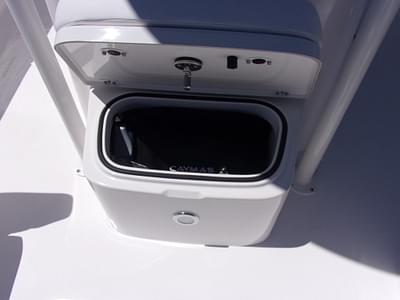

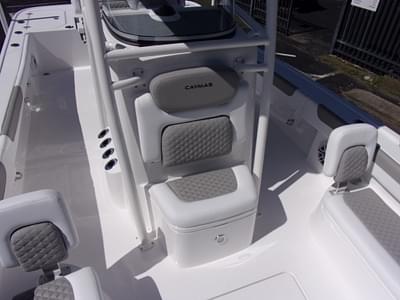

Front of console has built-in cooler with seat cushion and backrest
12 Volt accessory plug

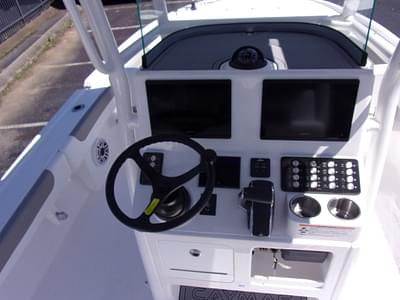

Dash accommodates two (2) 12” screens
Voyager compass surrounded by custom Surf Turf mat
Surf Turf mat on helm step pads and top of cooler (if equipped)
Surf Turf flooring inside of console
Tempered glass windshield with powder coated frame
Stainless steel console grab rail
Cockpit

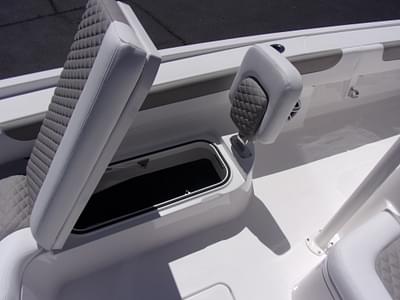

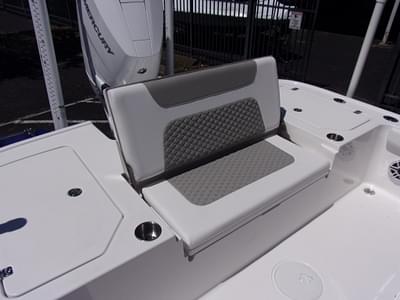

Custom aft bench seat with cushion and folding backrest and removable fiberglass storage bin
Two (2) stainless steel lighted cup holders at aft bench

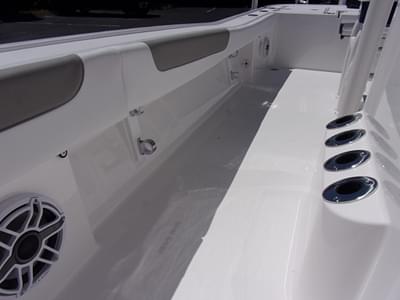

Under-gunwale rod storage
Two (2) lockable rod storage lockers—port and starboard
Raw water washdown station conveniently located under gunwale
Stainless steel lid-latches with stainless steel striker plates
Self-bailing cockpit with custom non-skid decking

General / warranty
Lifetime limited warranty to the original owner
Three (3) year component warranty covers carpet defects, steering, aeration pumps, boat electrical system, fuel tanks, gauges and deck hardware
Structural hull warranty is transferable within first 10 years of manufacture to second owner.
Read the Caymas Boats warranty for full details and specifics.


SPECIFICATIONS

LENGTH

27’ 7”

BEAM

9’ 4”

MAX HORSEPOWER

450 HP

FUEL CAPACITY

120 GAL.

FRESHWATER TANK CAPACITY

8 GAL.

LIVEWELLs (each)

35 GAL.

FREEBOARD

24”

DRAFT (engines up)

16”

DEADRISE AT TRANSOM

18.5°

APPROX. DRY WEIGHT

4,300 LBS

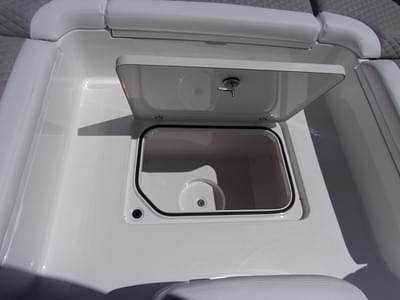

Forward Fish Box

45 GAL.

Height (waterline to top of hardtop)

8’1”
