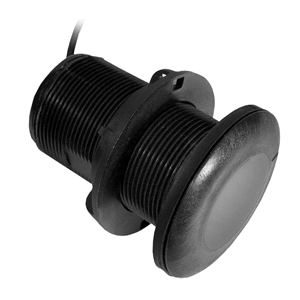

Garmin P19 Nylon 20° Tilt Transducer - 8-Pin

P19 20 Degree Tilted Element™ Thru-Hull with 8 pin Connector for Garmin

Minimize Your Drag

The P19 model have been the standard in low-profile models for many years. Their large sensitive ceramics allow deep echo sounding up to 206M (700'). These nearly flush units minimize drag as only 5mm (2/10") of the housing extends outside of the hull. The plastic P19 provides a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings.

Applications

• Cruising powerboats and sailboats
• Sailboats

Features

• Depth and temperature
• Fixed 20° tilted versions for 16° to 24° hull deadrise
• Right angle cable exit offers low headroom and protection when transducer is stepped on
• Included rubber washer allows tightening of the hull nut to irregular hull surfaces
• Housings are ABYC H-27 compliant
• Optional temperature sensor
• Plastic housing
• Boat Size: Up to 9M (30')
