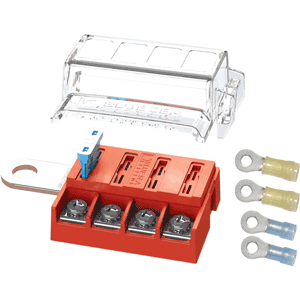

Blue Sea 5023 ST-Blade Battery Terminal Mount Fuse Block

ST-Blade Battery Terminal Mount Fuse Block

Features:

• Easy to install 4 ATO/ATC fused circuits

• Mounts on the battery terminal stud

• Screw terminals for securing wires

• Four Nylon insulated ring terminals included

• Insulating cover included

• Accepts Small Format Circuit Labels

• Includes 1 fuse

Specifications:

• Circuits: 4

• Maximum Amperage: 100A per block, 30A per circuit

• Maximum Voltage: 32V DC

• Mounting: Clearance for 3/8' [M10] stud

• Screw Terminal Type: #8-32 Screws with captive star lock washer
