Suzuki KingQuad 500AXi 2015
Bay Marine Trenton
Quinte West , Ontario
Pay Cash
& Start Purchase
Contact Dealer
& Schedule VisitPre-qualify and finance in advance
No impact on your credit and save time at our Quinte West store.At Bay Marine Trenton in Quinte West
See it, jump aboard at our Quinte West store.Pay with cash or your own financing
Start purchase online then pick it up at our Quinte West store.Powersports Details
Condition
used
Hours
N/A
Type
ATV
Fuel Type
N/A
Manufacturer
Suzuki
Model
KingQuad 500AXi
Powersport Details
| Condition | used |
|---|---|
| Type | ATV |
| Manufacturer | Suzuki |
| Model | KingQuad 500AXi |
| Year | 2015 |
| Location | Quinte West , ON |
| Boatzon Stock Number | 1774576377984 |
Powersport Description
2015 Suzuki KingQuad 500AXi
The rugged and reliable KingQuad 500AXi receives a few new changes that provides smoother acceleration, quicker throttle response, and a stronger feel in the mid-high RPM range. NEW for 2015 the KingQuad 500 AXi receives a Newly designed twin-spark cylinder head and modified cam profiles to improve both power output and fuel economy. The front end of the quad gets a newer aggressive stance while side panel change allows you to easily check your oil level without removing any body parts.
Over three decades ago, Suzuki literally invented the 4-wheel ATV. The Original Suzuki LT-125 established Suzuki as the First On 4-Wheels. The Suzuki KingQuad 500AXi carries on the tradition of performance that rules. Boasting the same advanced technology as the extraordinary KingQuad 750AXi, it's engineered to help you cut the work day down to size - or conquer the toughest trails. The KingQuad 500AXi offers plenty of class-leading features and its fuel-injected 493cc engine gives it exceptional performance. Independent front and rear suspension. A QuadMaticTM CVT-type automatic transmission, locking front differential and a host of other impressive features place the KingQuad 500AXi at the front of the pack.
- A powerful 493cc, SOHC, single-cylinder, liquid-cooled, four-stroke engine was designed for a wide powerband with strong top-end power. Its cylinder is canted forward for a lower center of gravity, reduced engine height and lower seat height. The engine also features a counterbalancer shaft for smooth operation.
- The KingQuad 500AXi has a compact 4-valve cylinder head with large intake valves and straight intake ports for increased cylinder charging efficiency. A sportbike-derived chain-and-gear camshaft drive system allows a short/narrow cylinder head design and reduced overall engine height.
- A lightweight aluminum cylinder bore is electro-plated with Suzuki's own race proven SCEM (Suzuki Composite Electrochemical Material) for improved heat transfer and tighter piston clearance.
- A high capacity aluminum radiator with large diameter cooling fan provides stable engine operating temperature.
- The KingQuad 500AXi comes with a QuadMatic™ CVT-type automatic transmission designed for maximum versatility and convenience with a fender-mounted gate-type shifter operation for high/low. Its advanced engine-braking system minimizes free-wheeling with the throttle off and helps control the vehicle during steep descents.
- Independent double A-arm front suspension (7.1 inches of wheel travel) includes large diameter shock absorbers with 5-way spring preload adjustment.
- Fully independent, A-arm/I-beam rear suspension with long suspension travel (7.9 inches of wheel travel), includes large diameter shock absorbers with 5-way spring preload adjustment and large diameter rear sway-bar.
- A winch-ready chassis with flexible tube routing comes standard (for wiring from the winch mounting space to under the seat).

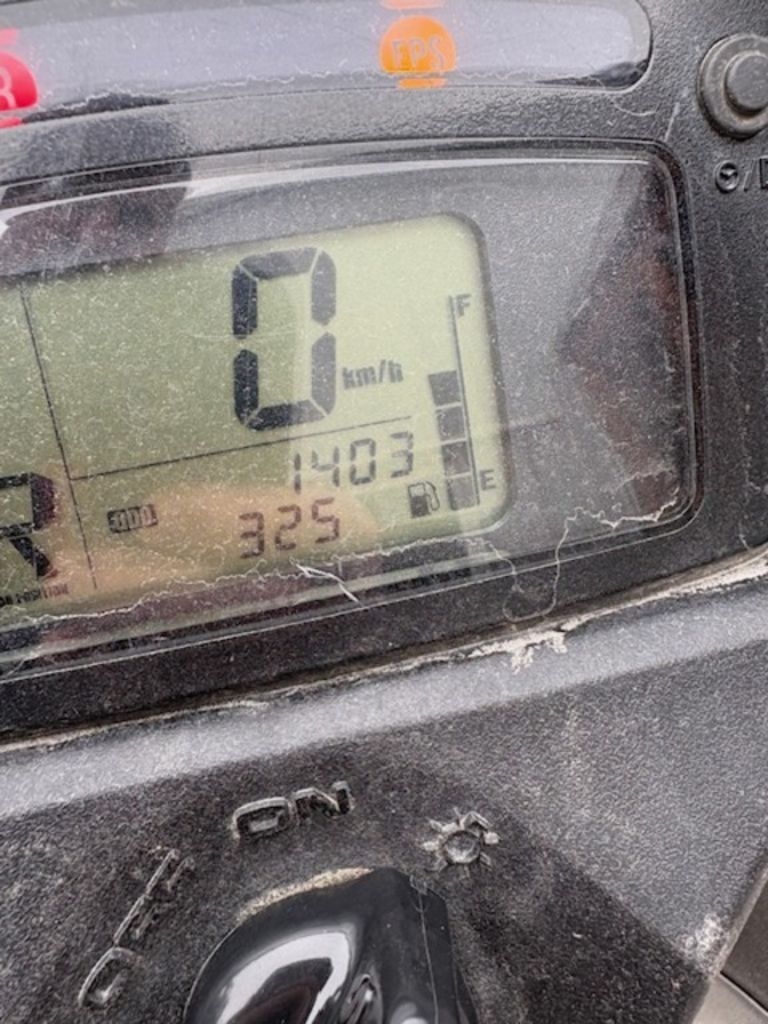

- Digital instrumentation includes LCD readouts for speedometer, odometer, twin tripmeters, hour meter, clock, fuel gauge, driving range position and drive mode. LED indicator lamps for high, low, neutral, reverse and drive—2WD/4WD and differential-locked 4WD. LED indicator lamps for fuel injection and engine temperature.
- The KingQuad 500AXi offers distinctively-styled 30W multi-reflector halogen headlights, and compact 5/21W tail light and brake light.
- A high output magneto generator system and large 18-amp maintenance-free battery provides extra power.
We offer the details and availability of listings in good faith, however, Boatzon is not liable for the quality, description, or pricing of this listing. This vessel is offered subject to prior sale, price change, or withdrawal without notice. If you have concerns about the information, images, or accuracy contained in this listing, you can report this listing by emailing us at Support@Boatzon.com
Engine Details
| Number of Engines | 1 |
|---|---|
| Warranty Till | No Warranty |
