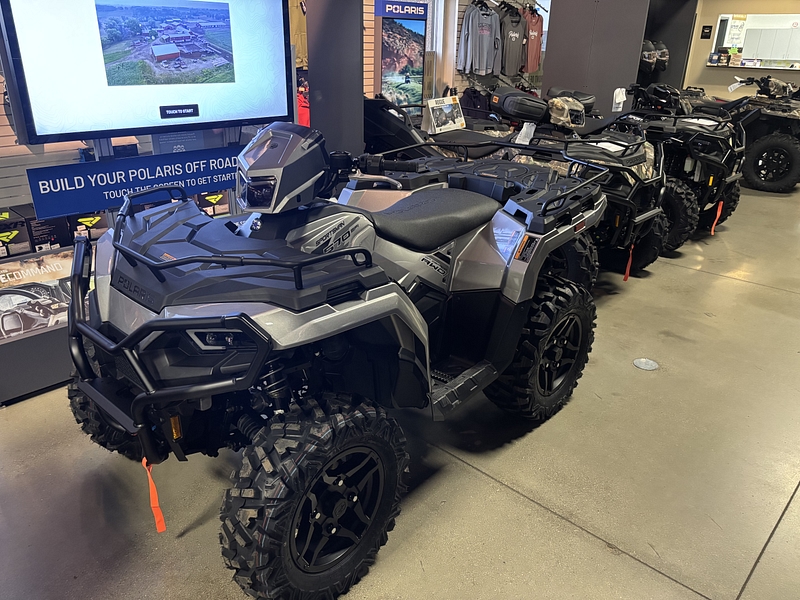

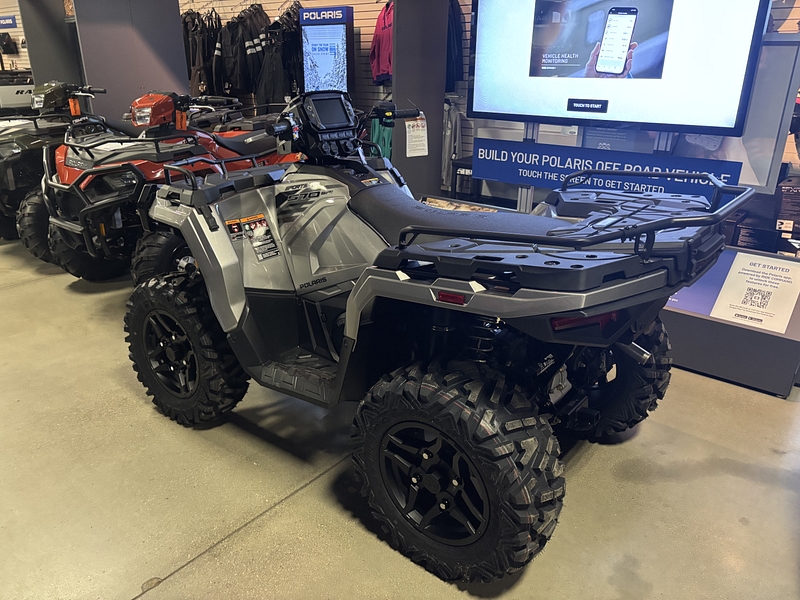

Polaris SPORTSMAN 570 ULTIMATE TRAIL RIDE COMMAND 2025

SPORTSMAN 570 Ultimate Turbo Silver Specifications
Find specifications for the 2025 Polaris Sportsman 570 Ultimate Turbo Silver ATV. Specs include engine, horsepower, transmission/final drive, ground clearance, travel, engine braking system, instrumentation, lighting, suspension, payload capacity, hitch type, towing capacity, cargo system and tires.

Print
Engine & Drivetrain
Active Descent ControlEquipped
CoolingLiquid
Cylinders Displacement567cc
Drive System TypeOne Touch On-Demand AWD/2WD
Engine Braking System (EBS)Equipped
Engine TypeProStar 4-Stroke DOHC Single Cylinder
Fuel System/BatteryElectronic Fuel Injection / 340 CCA
Horsepower44 HP
Transmission/Final DriveAutomatic PVT P/R/N/L/H In-line Shifting
Dimensions
Bed Box Dimensions (L x W x H)N/A
Estimated Dry Weight883 lbs (400 kg)
Front/Rear Rack90 lb /180 lb (40.8 kg /81.6 kg)
Fuel Capacity4.5 gal (17.0 L)
Ground Clearance11.5 in (29 cm)
Hitch Tow Rating1,350 lb (612 kg)
Hitch TypeStandard 1.25 in (3.2 cm) Receiver
Overall Vehicle Size (L x W x H)83 x 48 x 47 in (210.8 x 121.9 x 119.4 cm)
Payload Capacity485 lb (220 kg)
Person Capacity1
Seat Height33.25 in (84.5 cm)
Wheelbase50.5 in (128.3 cm)
Brakes
Front/Rear BrakesSingle Lever 3-Wheel Hydraulic Disc with Hydraulic Rear Foot Brake
Parking BrakePark In-Transmission / Lockable Hand Lever
Additional Specifications
Cargo systemLock & Ride Compatible 5 Gal (18.9L) Front Dry Storage, 6 Gal (27.3L) Rear Dry Storage
Electronic Power SteeringMulti Select EPS

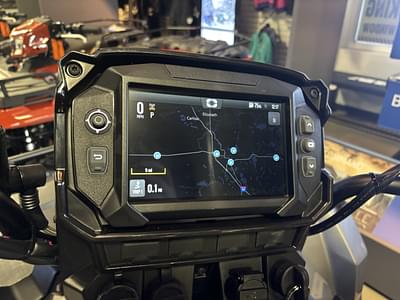

Instrumentation7' Glove Touch Display, All Digital Gauge, Speedometer, Odometer, Tachometer, Two Tripmeters, Hour Meter, Gear Indicator, Fuel Gauge, AWD Indicator, Volt Meter, Coolant Temperature, Hi-Temp Light, Text and Call Notifications
LightingHigh Output LED POD, High Output LED Bumper Lights, Dual LED Brake lights/Taillights
Other Standard Features7' Glove Touch Display, Plow Mode, Group Ride, GPS Navigation, Bluetooth, 3,500 lb. Polaris HD Winch with Auto Stop and Synthetic Rope, Front Trail Bumper, Front and Rear Rack Extenders, Painted Plastics, Painted Springs, In Pod USB Charger, PIN Activated Secrity System (P.A.S.S.), Front and Rear A-Arm Guards
Tires / Wheels
Front Tires26 x 8-14; DURO
Rear Tires26 x 10-14; DURO
Wheels14 in. (35.6 cm) Aluminum
Suspension
Front SuspensionSealed Arched Dual A-Arm with 8.9 in (22.6 cm) Travel
Rear SuspensionSealed Dual A-Arm, IRS 9.5 in (24.1 cm) Travel
