KingFisher 3025 XRS 2026

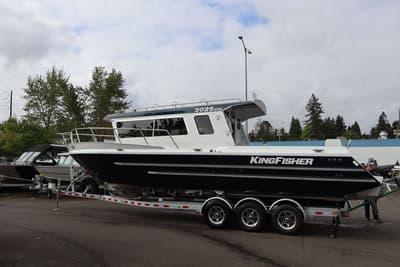

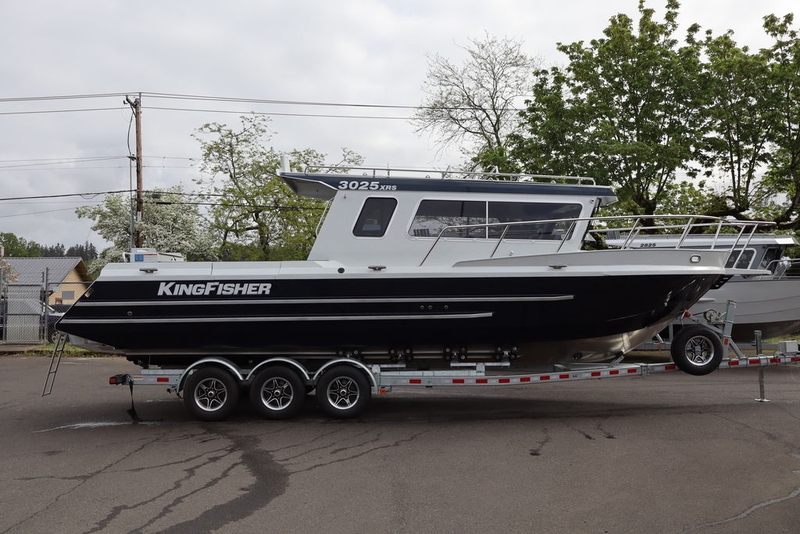

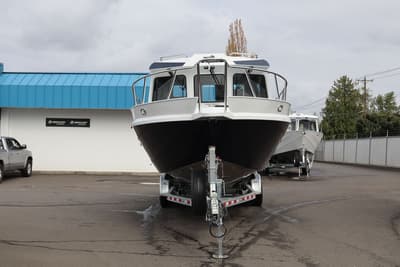

2026 KingFisher 3025 XRS

Welcome to the Next Level of Offshore Boating.

KingFisher Boats proudly unveils the all-new 3025 XRS – a vessel that sets new standards in offshore performance and luxury.

Its integral aluminum cockpit roof extension provides essential shade and shelter, perfect for family outings in any weather. The full-height cabin headroom offers a welcoming retreat, complete with updated upholstery and cabinetry that exude comfort and craftsmanship.

Equipped with Garmin’s state-of-the-art navigation and marine camera technology, the 3025 XRS caters to the modern explorer. The KingDeck flooring ensures durability and comfort, making your time on the water enjoyable and stress-free.

Specifications

Series: Offshore
Model: 3025 XRS
Length Overall: 30' 5'
Beam: 9' 6'
Maximum HP: 500 hp
Cabin Length: 9' 4'
Cabin Headroom: 6' 5'
V-berth Length: 6' 0'
Transom Height: 25'
Transom Fish Locker: 30 USG / 114 L
Transom Weight Limit: 1468 lbs / 665 kg
Cockpit: 9' 3'L x 7' 10'W
Cockpit Floor Fish Locker: 146 USG total / 553 L
Deadrise: Variable 18°
Fuel Capacity: 200 USG / 757L
Side: 0.160'
Side Height: 3' 6'
Bottom: 0.250'
Bottom Width: 7' 6'

Standard Features

Standard Hull Features
Pre-Flex® hull technology
Full length performance delta keel
Engineered full length reverse chines
Performance lifting strakes
Formed compound angle box stringers / full length
Fully welded bow stem & heavy duty keel guard for 7/16? total keel thickness
Single piece hull sides with wide formed gunnels
Fully welded external rub rails / hull stiffeners
Closed cell polyurethane foam below cabin deck
Anchor rope locker; self draining with interior access hatch

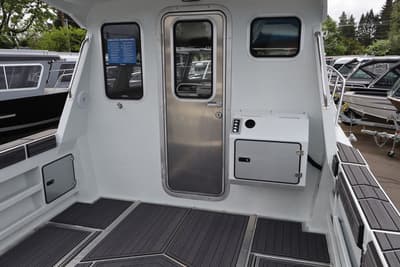

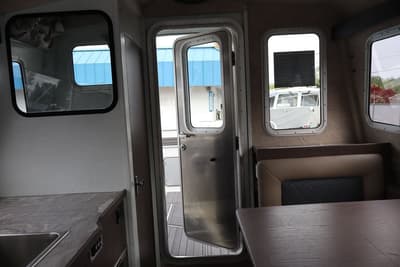

Water tight cabin bulkhead w/ heavy duty weather tight cabin door
Forward sloping windshield with 3 aluminum framed safety glass windows

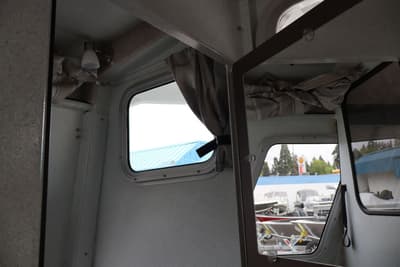

Aluminum framed side sliding windows w/screen
Aluminum framed aft bulkhead windows
Integral aluminum cockpit roof extension
Raised self-bailing cockpit deck

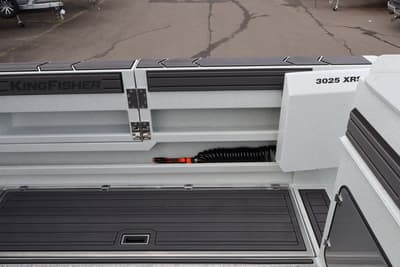

Fish lockers in cockpit floor with commercial diaphragm pump outs

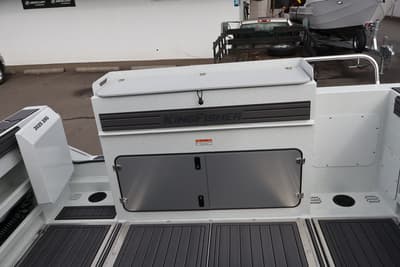

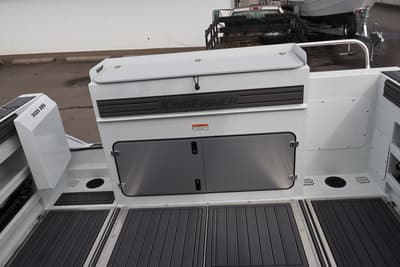

Raised transom fish locker with cutting board and fish rail
Hinged doors for easy access to bilge compartment
Aft cockpit side storage trays and aluminum cockpit toe rail
Aft cockpit raised gunnel coamings with gunnel pads
Transom access door

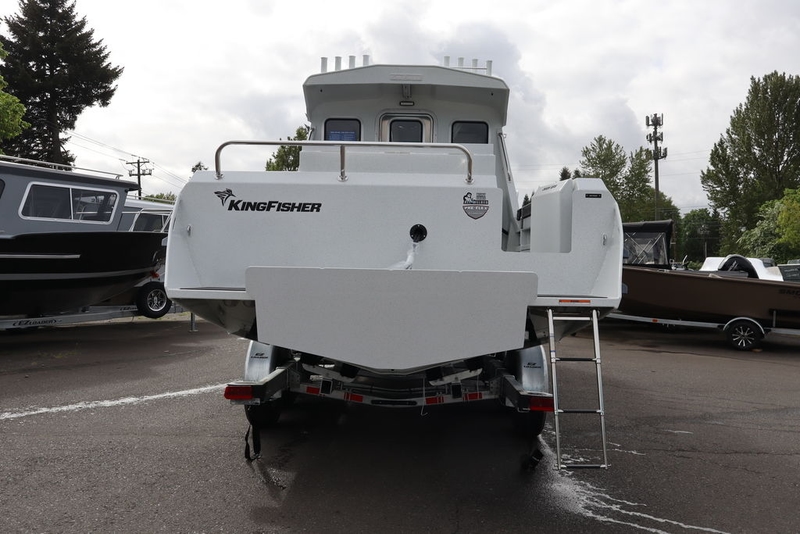

Full width integrated offshore motor bracket
Welded bow eye with stainless sleeve and 2 welded aluminum stern eyes
9 x 9? heavy duty welded bow and stern cleats
Foul weather bow coamings with hawse rings
Stainless below waterline thru-hull fittings w/ welded reinforcements
Welded aluminum bow pulpit w/ UHMW anchor protection

Standard Exterior Features
Stainless steel 1-1/4? offshore bow rail
Bolt on sacrificial hull anodes
Shipping protection cover
Aft cockpit KingDeck marine floors & gunnel tops
Stainless steel HD re-boarding ladder

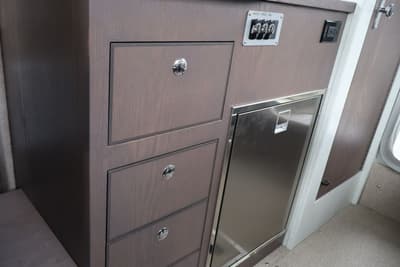

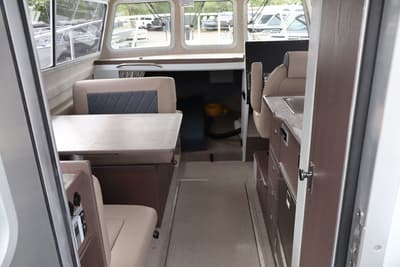

Standard Cabin Features

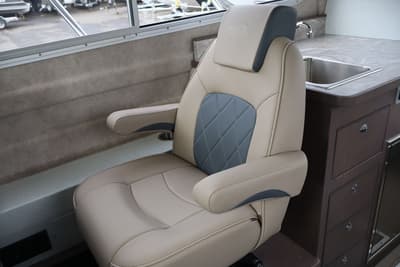

Shockwave suspension helm seat with slider
Carpeted hull sides from gunnel to floor
Finished cuddy with carpeting and hull liner

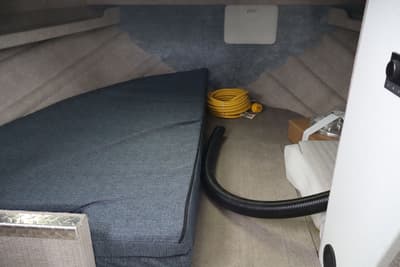

Carpeted storage compartment in v-berth
Center cabin floor storage
18? Hatch with screen

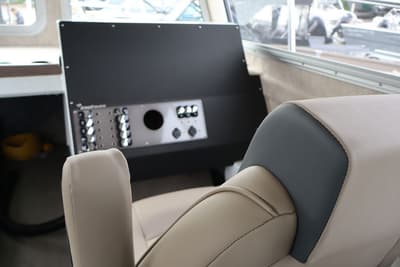

XL dash panel for flush mounted electronics
Carpeted dash board with raised sill
Aluminum overhead radio shelf
Easy care premium marine vinyl flooring
6 Drink holders

Standard System Features
Hydraulic steering with center mount cylinder
Single engine battery management system with remote panel
Marine color coded wire harness with water tight connections
Premium dash switch & gauge panels, 6 accessory fuse slots
Electric 12? X 12? trim tabs with position indicators
3 Electric 1100 gph auto bilge pumps & high water bilge alarm
Navigation lights package
3 Heavy duty pantographic windshield wipers
Interior LED cabin & v-berth lighting

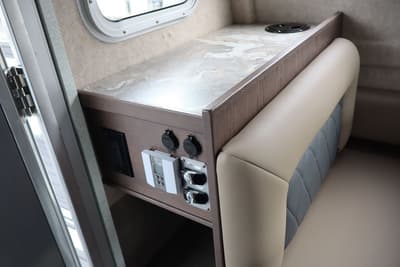

12V power point & 3 dual USB outlets
Dual compact electric horn
Carb
