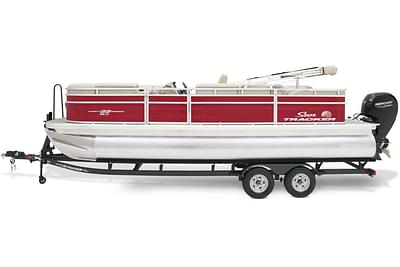

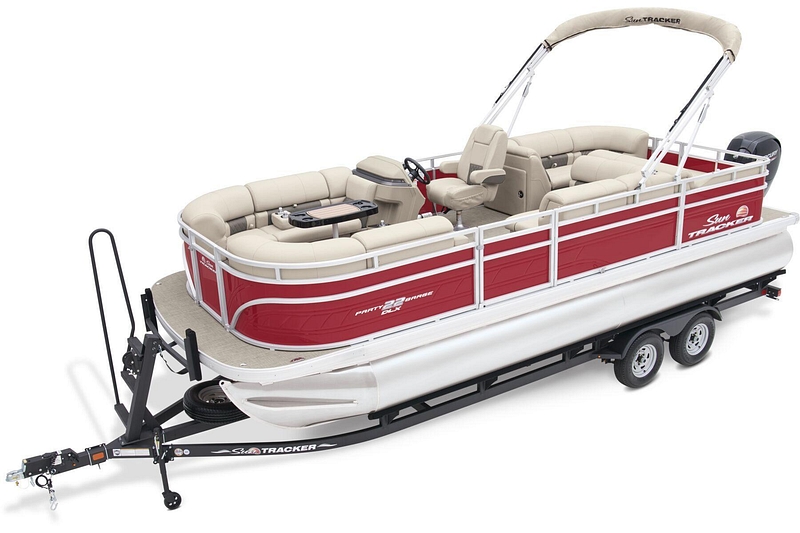

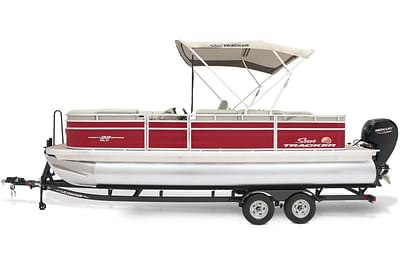

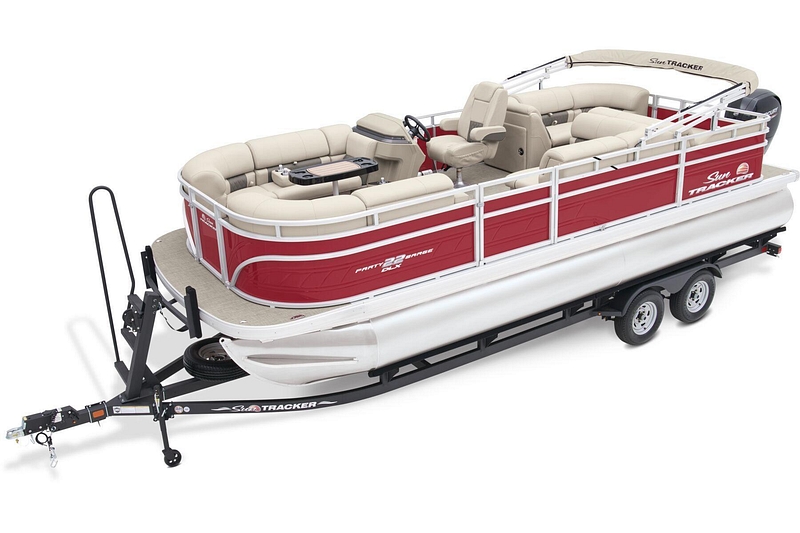

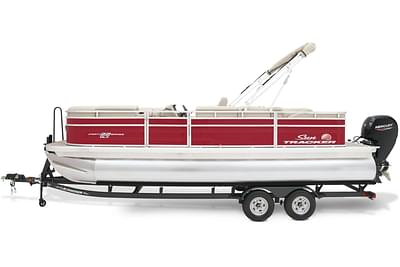

Sun Tracker Party Barge 22 RF DLX 2025

Additional Specs
Additional Specs

• Length:24' 2'
• Deck Length: 22' 1'
• Deck Width: 8' 6'
• Max. Recommended HP: 150 HP
• Fuel Capacity: 32.1 gal.
• Pontoon Log Length: 22' 3'
• Pontoon Log Diameter: 24'
• Pontoon Log Material: 0.08 5052 marine alloy
• Max. Person Capacity: 11 persons
• Max. Person Weight: 1500 lbs.
• Max. Person, Motor & Gear Weight: 2200 lbs.
• Interior Depth: 29.5'
• Average Dry Weight: 2300 lbs.
• Average Package Weight: 4135 lbs.
• Package Height: 8' 10'
• Package Width: 8' 6'
• Towing Length: 32' 4'
• Storage Length: 32' 4'

Standard Features

Comfort, Convenience & Peace of Mind

• 10+LIFE™ Limited Lifetime Warranty: 10-year bow-to-stern warranty + limited lifetime structural & deck warranty
• NMMA® certified

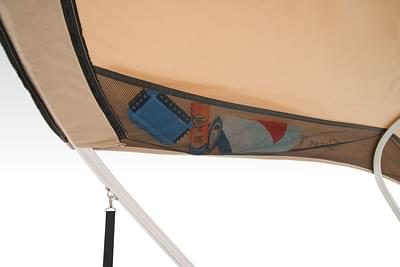

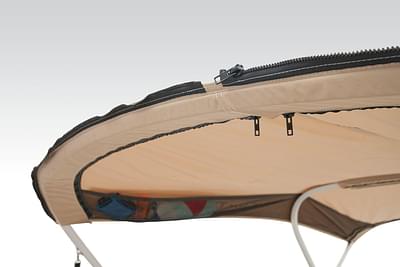

• 10' (3.05 m) SUN TRACKER® QuickLift™ Bimini top w/LED courtesy lights, storage pockets & protective boot (color-coordinated Black w/Charcoal fencing or Sand w/Copper Red fencing)
• Built-in LED docking lights

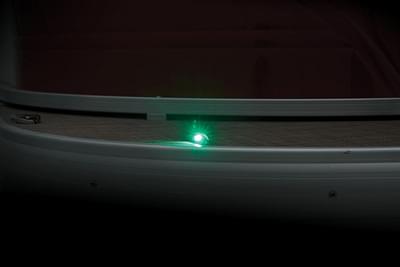

• Built-in LED navigation & anchor lights
• 4 folding mooring cleats & starboard side tie-off mooring eye

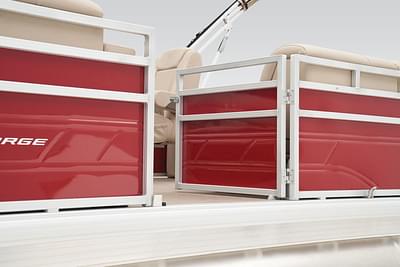

• Port wheelchair-accessible gate

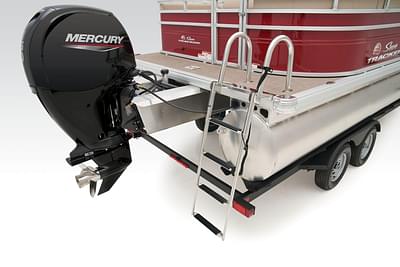

• Rear boarding platform w/4-step telescoping boarding ladder & grab rails

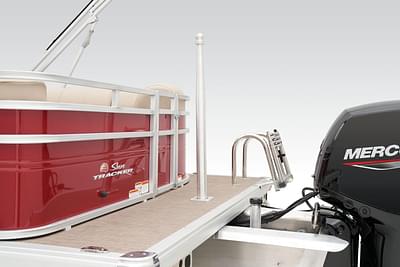

• Aft receptacle base for optional ski tow pylon
• Motor-stop safety lanyard
• Fire extinguisher
• Horn

Console

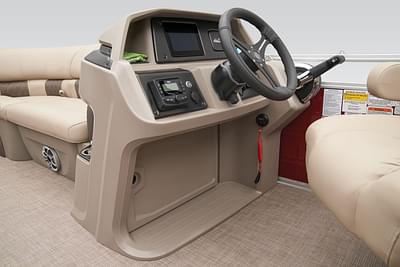

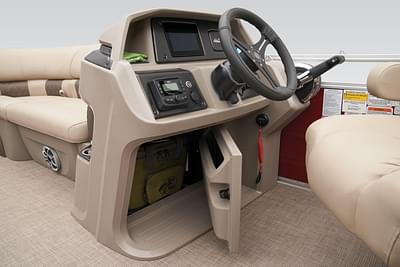

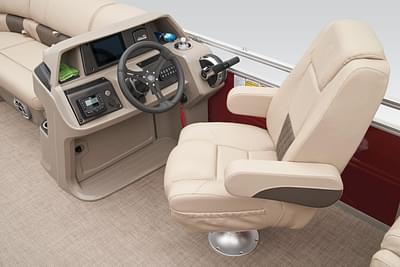

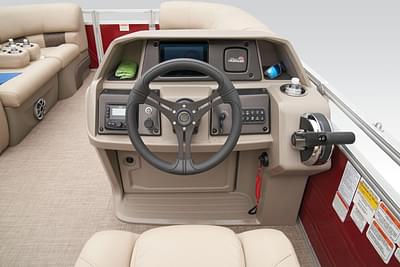

• Driver console w/integrated storage, drink holders, built-in footrest & ergonomically-positioned controls

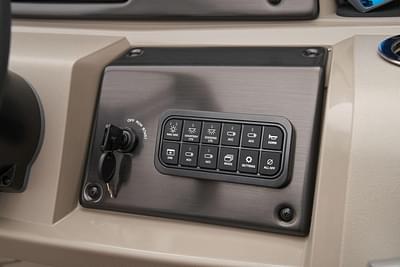

• SUN TRACKER FLARE™ touchscreen gauge display & 12-button switch panel
• Tilt steering w/deluxe soft-touch steering wheel

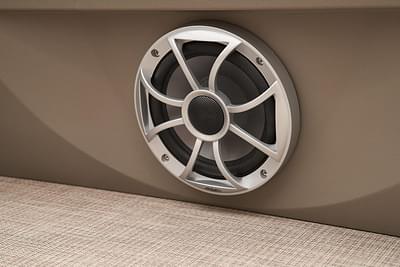

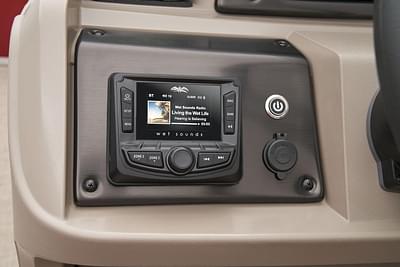

• Wet Sounds® stereo w/Bluetooth® & four 6.5' (16.51 cm) speakers, strategically located & shielded within the seat bases
• Master power on/off switch
• Recessed mobile phone cubbies
• USB charging receptacle

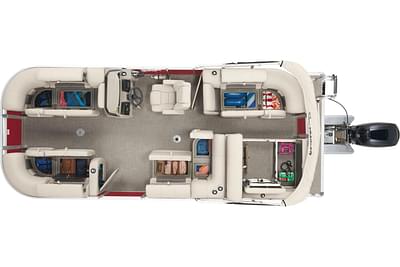

Interior

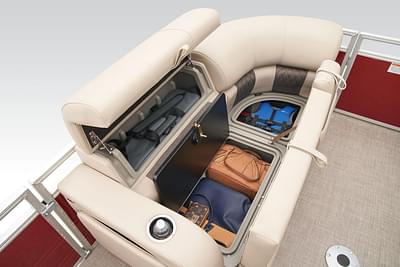

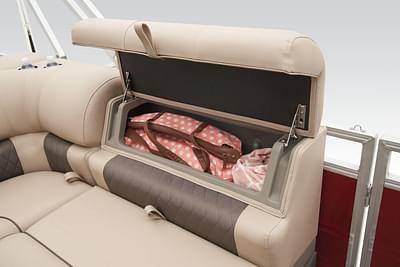

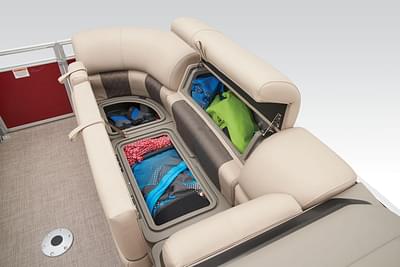

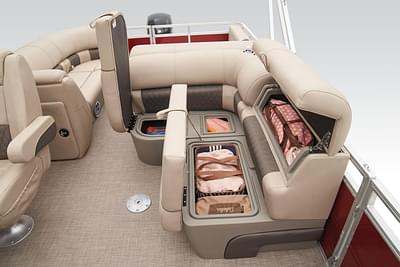

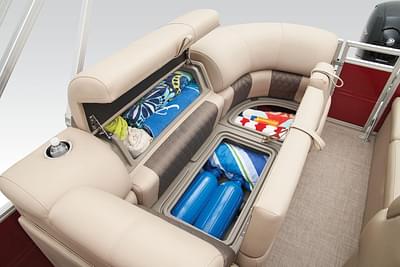

• Patented built-in STOW MORE™ seat-back storage system for all couches
• Bow port couch w/STOW MORE™, underseat storage & armrest w/drink holder

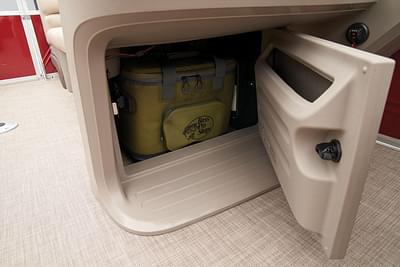

• Bow starboard console couch w/STOW MORE™ & underseat storage

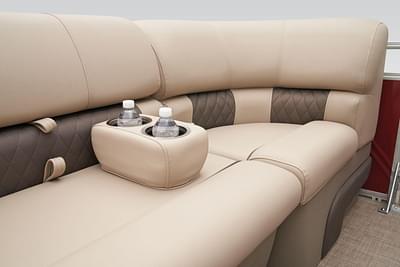

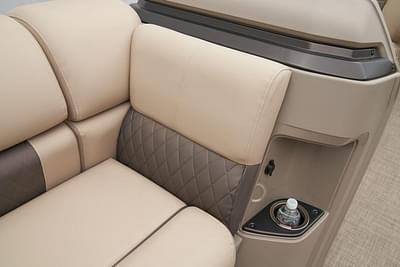

• 2 movable drink holders/armrests for couch seating

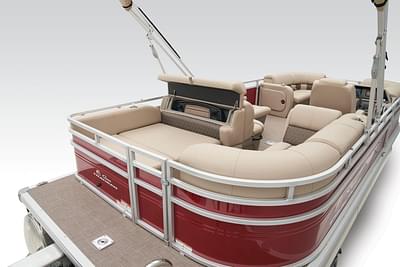

• Midship L-lounge couches w/STOW MORE™ & underseat storage

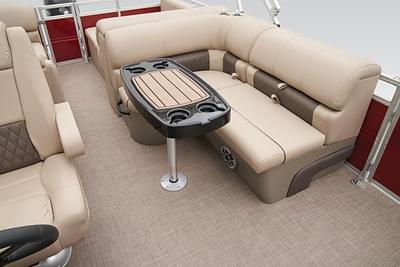

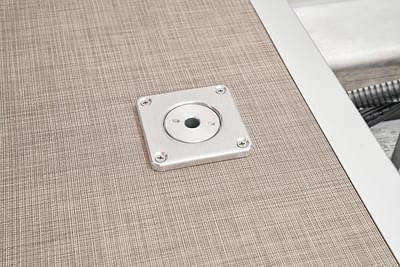

• Removable table w/soft-touch insert; 4 molded-in drink holders; & 2 pedestal base locations

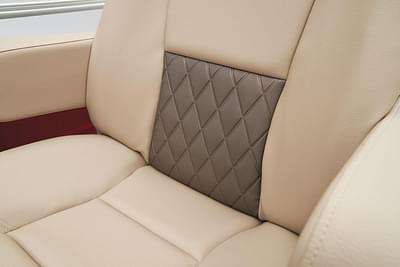

• Reclining, high-back swiveling helm bucket seat w/self-leveling armrests

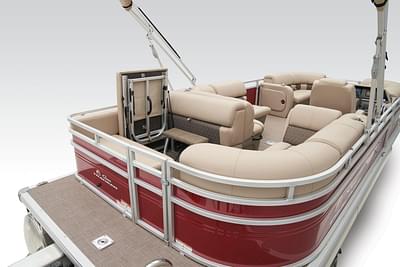

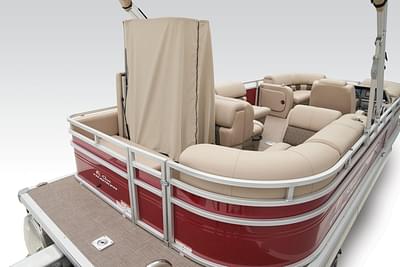

• Aft port rear-facing double lounge w/STOW MORE™, underseat storage & pop-up changing room

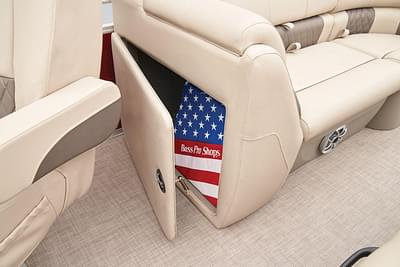

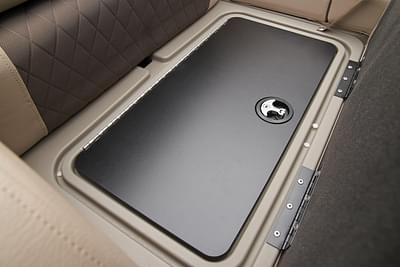

• Aft starboard couch w/STOW MORE™ & underseat, lockable storage
• Interior courtesy lighting
• Full-width aft swim deck

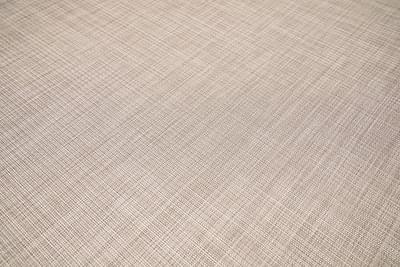

• Woven 16-oz. (.45 kg) marine-grade flooring throughout

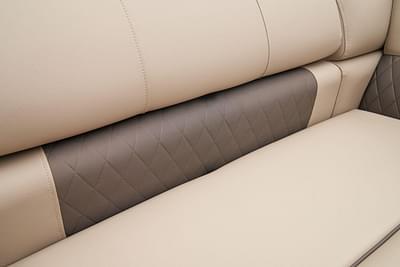

• Marine-grade, UV-resistant, top-coated upholstery w/26-oz. (.74 kg) base material & multiple densities of foam

Construction & Performance

• 24' (60.96 cm) diameter high-buoyancy multichambered & internally-braced pontoon logs
• Full-length, 1-piece longitudinal M-bracket deck supports
• Full-width, heavy-duty extruded Z-bar deck supports that are thru-bolted to longitudinal M-brackets
• Heavy-duty aluminum U-channel reinforcement behind bow deck trim
• Reinforced bow structure

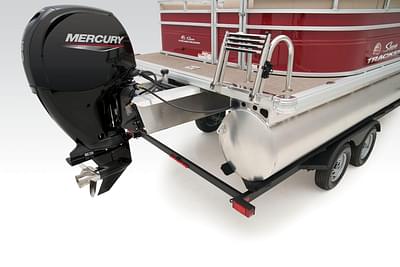

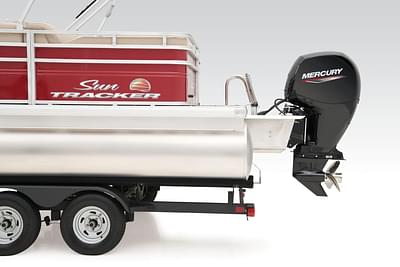

• All-welded, all-aluminum extended motor pod w/built-in EPA-compliant fuel system
• All-aluminum box-beam transom for strength & longevity
• Pressure-treated 3/4' (1.91 cm) deck w/Limited Lifetime Warranty
• 1-1/4' (3.18 cm), .090' (.23 cm) thick anodized aluminum fence rails
• Sound- & vibration-deadening fence insulation for a quiet ride
• Extruded & anodized aluminum deck edging w/polished aft corner covers
• Precision fit & finish via plasma & laser-cut parts & robotically-welded construction
• Rotomolded storage, furniture & console for superior strength & longevity
• Nylon gate latches & heavy-duty hinges that open inward
• Stainless or coated corrosion-resistant fasteners
• Factory-matched aluminum propeller

Exterior

• Color: Charcoal or Copper Red fencing

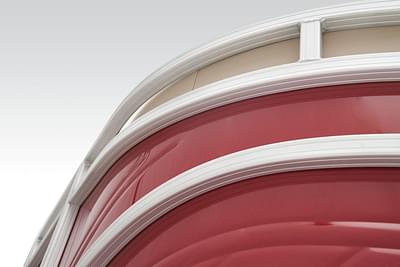

• Patent-pending TRACK FORMED™ fence design w/high-sheen finish for long-lasting cosmetics
• Elevated fence panels for deck drainage & ventilation

Electrical

• Easy-access marine-grade automotive-style fuse panel w/latching fuse block door
• Protective abrasion-resistant wire wrap
• Water-resistant connectors

Disclaimer
We employ best efforts to present accurate pricing, specifications, features and availability for models shown on this site. On occasion, data transmission errors may produce anomalies in information presented. Photos could show optional accessories not included in the listed price or not available on the actual model in stock. Should you have questions about what you see here, your dealer will be able to confirm correct availability, model content and pricing. Inventory shown is subject to prior sale or transfer to another location. Engine HP: 9.9 bhp; 7.4 kW
Deck Length: 290 in. (7400 mm)
Deck Width: 102 in. (2.6 m)
Weight: 2300 lb. (1043.3 kg.)
Capacity: 2200 lb. (997.9 kg.)
Number of Tubes: 2
Fuel Capacity: 32.1 gal. (121.5 L)
